M3W
$99.99 – $104.99
M3W is a TKL south-facing aluminum keyboard with 87 keys, designed without a number pad. This layout strikes a perfect balance between size and functionality, maximizing desk space for users
With its multi-mode connectivity options, including 2.4GHz wireless, Bluetooth, and USB-C wired connection, users are no longer limited in how they can connect. Say goodbye to restrictions and embrace the ultimate typing experience!
Multi-mode
Customizable RGB
6000mAh Battery
N-Key Rollover
5-Pin Hot-Swappable
Mac & Windows
M3W Multi-Mode
With its multi-mode connectivity options including 2.4GHz wireless, Bluetooth, and USB-C wired connection, you are no longer limited in how you can connect. Moreover, it supports storing up to 3 Bluetooth devices simultaneously.
2.4Ghz Wireless
M3W is equipped with a receiver that allows users to utilize the 2.4GHz wireless mode, providing low latency suitable for gaming and typing purposes.
BT 5.0
M3W makes it easy to connect up to 3 devices with a simple Fn+E/R/T combination, enabling seamless switching between tablets, computers, and phones.
USB-C Wired Mode
M3W offers a choice for users who prefer a USB Type-C wired keyboard, ensuring consistent and rapid response times for FPS gaming and minimal input lag.
M3W
TKL 87-key Aluminum Tri-mode DIY Kit
MonsGeek M3W TKL Tenkeyless keyboard barebone features a compact 87-key layout excluding the numeric keypad. This design choice not only improves the keyboard’s portability but also provides users with extra desk space, allowing for a more organized workspace.
M Series QC Guide
Learn about what to expect with the order. MonsGeek provides its standard on how we manage aluminum finishes during QC process. Click icon on the left to download.
Built-in 6000mAh Battery
With a high-capacity battery of around 6000mAh, users can enjoy prolonged periods of uninterrupted typing, gaming, or productivity without the need for constant recharging.
Battery Runtime
around 150 Days (~ average 4hr/day without RGB)
around 8 Days (~ average 4hr/day with RGB)

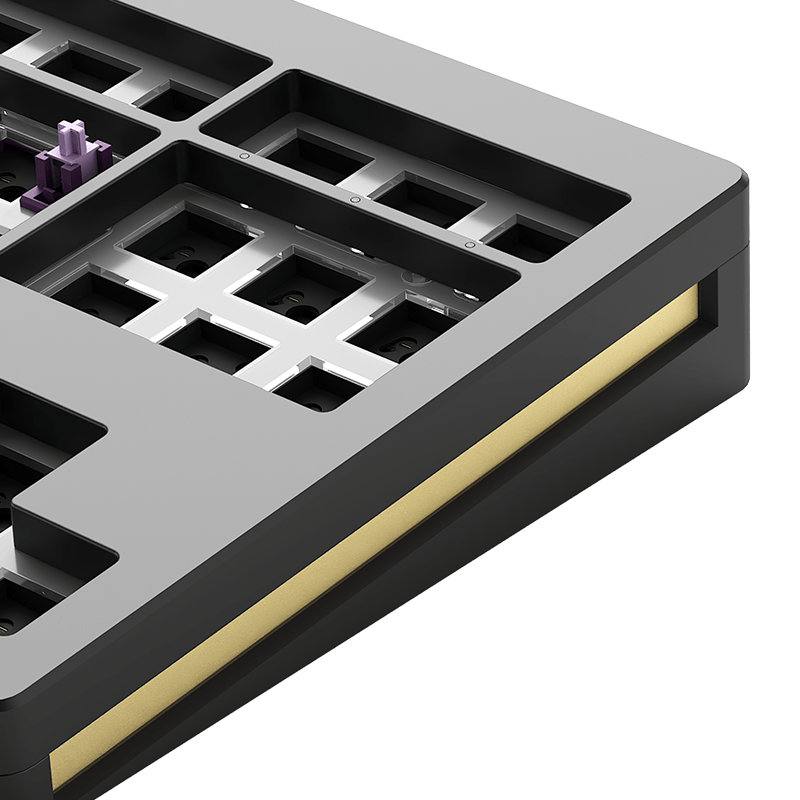

Golden Accent
Adding a touch of class and elegance, we opted to add a beautiful golden accent so that no matter which way you look at it, you’ll fall in love over and over again.
South-facing PCB
The south-facing PCB of the M3W avoids causing interference with Cherry profile keycaps during customization, offering more compatibility and flexibility.
RGB Backlit
M3W Aluminum barebone can help you type in the dark with decent backlit. It has over 20 preset backlighting modes.
You can easily create and tailor your own lighting effects with the MonsGeek Cloud Driver, which offers over 16 million unique colors per key, as well as adjustable brightness and animation speed level.
MonsGeek Driver
The key/lighting effects customization can be programmed by MonsGeek driver in all three modes.
In all three modes, the lighting effects can also achieve audio visualizer effects with MonsGeek driver.
Mac and Windows System Switch
– Top: Mac Wireless Mode (built-in power supply on)
– Middle: Default Windows Wired Mode (built-in power supply off)
– Bottom: Windows Wireless Mode (built-in power supply on)
Note: The switch is located under the CAPS key
PORON Plate Foam
M3W is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.
Polycarbonate Plate
M3W utilizes a transparent PC plate to offer flexibility surpassing that of metal, while also reducing low-frequency resonance.
Plate-mounted Stabilizers
M3W barebone utilizes purple plate-mounted stabilizers, which effectively minimizes keycap wobbling.
3mm PORON Case Foam
MonsGeek M3W has undergone an upgrade, transitioning to Poron case foam with superior elasticity compared to M3.
*Disclaimer: Using thicker foam may reduce flex, whether to include it or not is down to your personal preference
VHB Insulation Layer
A VHB insulation layer has been added to the bottom case in order to prevent any short-circuit issues. It’s rare for these issues to occur but we want to add extra protection.
Accessories to Play With
Extra teflon pads included for users who wish to perform a force break mod.
Extra tape for users who wish to perform a tape mod.
MonsGeek includes a 3mm PORON foam for a balanced feeling. Disclaimer: the foam will affect the overall sound profile and flex.
Demonstration
| Model | M3W (Multi-modes) Barebone |
| Mount | Gasket |
| Case Material | Aluminum |
| Color | Black/Silver/Purple |
| Connection | Wired & Bluetooth & 2.4G Wireless |
| Battery | 6000mAh |
| LED | RGB |
| Hotswap | Y |
| Plate | PC |
| Plate Foam | Poron |
| Switch Pad | IXPE |
| Case Foam | Poron |
| Drying Agent | Y |
| Tape | Y (not pre-installed) |
| Stabilizer | Pre-installed Plate Mount Stabilizer |
| Force Break Mod Stripes | Teflon Pads (not pre-installed) |
| QMK/VIA | N |
| Software | MonsGeek Driver |
| Cable | Coiled Cable |
| Size | 36.6cm*14.6cm*3.4cm |
| Barebone Weight | around 2000g |
