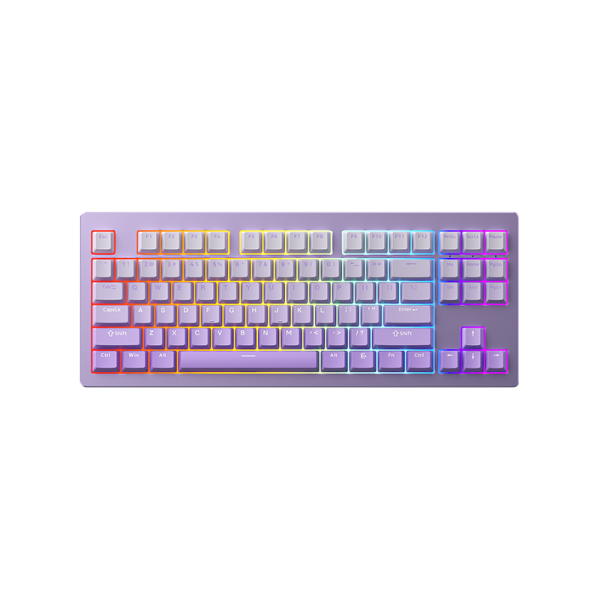

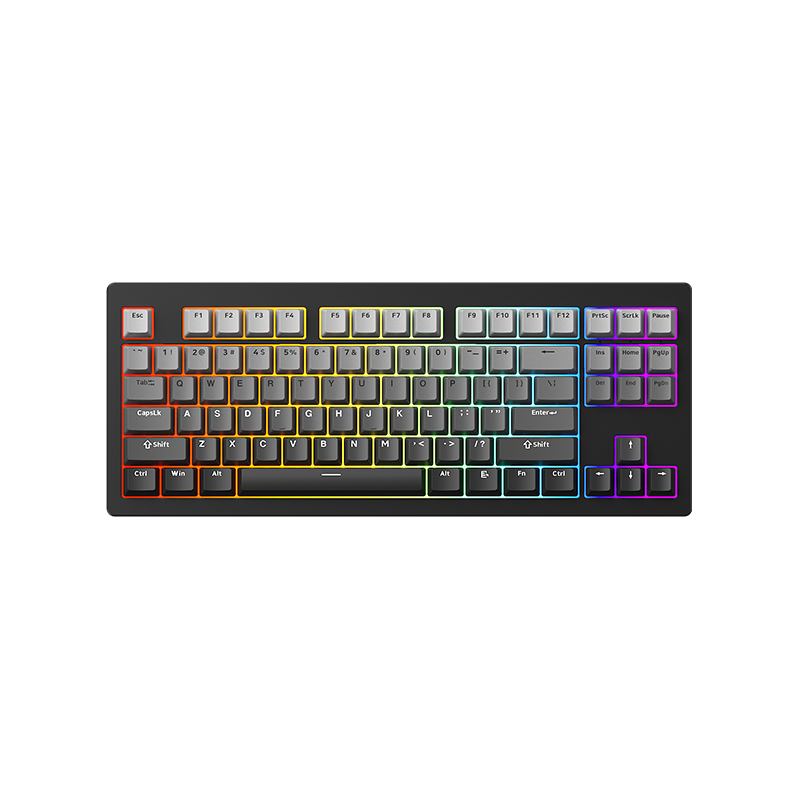

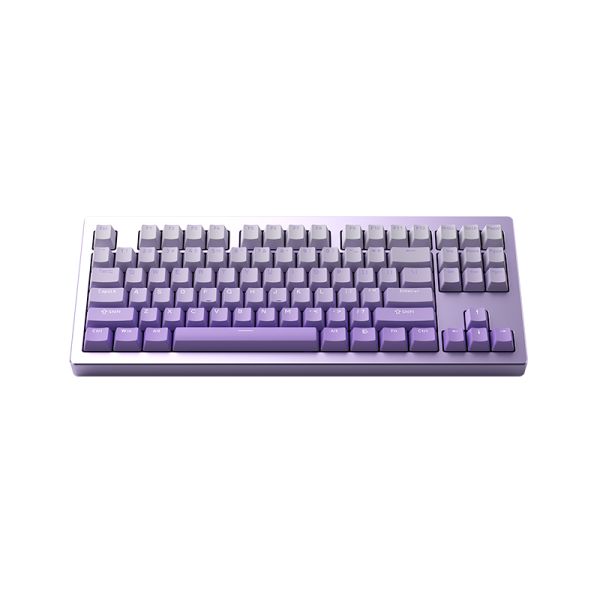

M1W V3 HE Fully Assembled
$129.99 – $149.99
MonsGeek’s M1W V3 multi-mode aluminum keyboard showcases magnetic switches. With these switches, users can conveniently tailor the actuation distance, a feature especially beneficial for gamers aiming for swift actions, particularly in FPS games. The following functions exemplify this:
- 8K Hz Polling Rate Wired USB-C Solution;
- Cream Yellow V2 Magnetic Switches for Higher Precision Typing;
- Calibrates Automatically Every Second;
- Rapid Trigger: 0.1mm~2.5mm;
- Dynamic Keystrokes (up to 4 actions);
- Customizable Actuation Distance: 0.1mm~4.0mm;
- Mod-Tap;
- Toggle Key;
- Roar Mode;
- Bottom Deadzone Setting;
Latest Firmware(as of 24/6/21): V103(RFV106 MLEDV101)
Disclaimer: This magnetic switches keyboard does NOT support mechanical switches. However, you can purchase the PCBA separately that supports 5-pin mechanical switches.
![tester-4](https://www.monsgeek.com/wp-content/uploads/2023/02/tester-4-1.jpg)
![tester-1](https://www.monsgeek.com/wp-content/uploads/2023/02/tester-1.jpg)
![tester-2](https://www.monsgeek.com/wp-content/uploads/2023/02/tester-2.jpg)
![tester-3](https://www.monsgeek.com/wp-content/uploads/2023/02/tester-3.jpg)

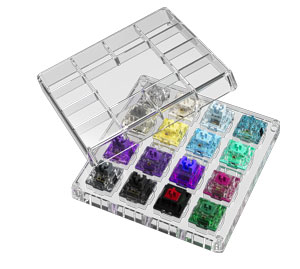

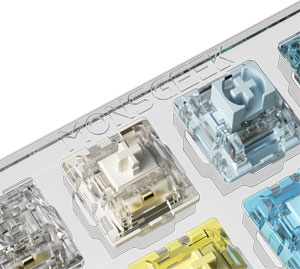

16-Key Switches Tester
![16-Key-Switch-Tester9](https://www.monsgeek.com/wp-content/uploads/2023/02/16-Key-Switch-Tester9.jpg)
![16-Key-Switch-Tester10](https://www.monsgeek.com/wp-content/uploads/2023/02/16-Key-Switch-Tester10.jpg)
Tactile Switch
![](https://www.monsgeek.com/wp-content/uploads/2023/02/未标题-2.jpg)
Type: Tactile
Operating Force: 36gf ± 5gf
Total Travel: 4.0 ± 0.5mm
Pre-Travel: 1.9 ± 0.3mm
Tactile Position: 0.5 ± 0.3mm
Tactile Force: 50gf ±5gf
Akko CS Lavender Purple
![](https://www.monsgeek.com/wp-content/uploads/2023/02/3.jpg)
Type: Tactile
Operating Force: 40gf ± 5gf
Total Travel: 4.0 – 0.5mm
Pre-Travel: 2.0 ± 0.3mm
Tactile Position: 0.5 ± 0.3mm
Tactile Force: 56gf ±5gf
Akko CS Jelly Purple
![](https://www.monsgeek.com/wp-content/uploads/2023/02/5.jpg)
Type: Tactile
Operating force: 36gf ± 5gf
Total Travel: 4.0 – 0.5mm
Pre-Travel: 2.0 ± 0.3mm
Tactile Position: 0.5 ± 0.3mm
Tactile Force: 55gf ±5gf
Akko CS Wine White
![](https://www.monsgeek.com/wp-content/uploads/2023/02/4.jpg)
Type: Tactile
Operating force: 38gf ± 5gf
Total Travel: 3.5 ± 0.3mm
Pre-Travel: 2.0 ± 0.3mm
Tactile Position: 0.5 ± 0.3mm
Tactile Force: 53gf ±5gf
Akko V3 Cream Blue
LINEAR Switch
![](https://www.monsgeek.com/wp-content/uploads/2023/02/cream-yellow.jpg)
Type: Linear
Operating Force: 50gf ± 5gf
End Force: 58gf ± 5gf
Total Travel: 3.5±0.3mm
Pre-Travel: 1.9±0.3mm
Akko V3 Cream Yellow
![](https://www.monsgeek.com/wp-content/uploads/2023/02/6.jpg)
Type: Linear
Operating Force: 50gf ± 5gf
End Force: 60gf ± 5gf
Total Travel: 4.0 ± 0.3mm
Pre-Travel: 1.9 ± 0.3mm
Akko CS Jelly Black
![](https://www.monsgeek.com/wp-content/uploads/2023/02/cs-silver.jpg)
Type: Linear
Operating Force: 43gf ± 5gf
End Force: 48gf ± 5gf
Total Travel: 3.0 ± 0.3mm
Pre-Travel: 1.0 ± 0.5mm
Akko CS Silver
![](https://www.monsgeek.com/wp-content/uploads/2023/02/red-1.jpg)
Type: Linear
Operating Force: 43gf ± 5gf
End Force: 53gf ± 5gf
Total Travel: 4.0 – 0.5mm
Pre-Travel: 1.9 ± 0.3mm
Akko CS Wine Red
![](https://www.monsgeek.com/wp-content/uploads/2023/02/Switches-18.jpg)
Type: Linear
Operating Force: 38gf ± 5gf
End Force: 45gf ± 5gf
Total Travel: 4.0 – 0.4mm
Pre-Travel: 2.0 ± 0.6mm
Gateron White – Lubed
![](https://www.monsgeek.com/wp-content/uploads/2023/02/green-1.jpg)
Type: Linear
Operating Force: 50gf ± 5gf
End Force: 63gf ± 5gf
Total Travel: 4.0 – 0.5mm
Pre-Travel: 1.9 ± 0.3mm
Akko CS Matcha Green
![](https://www.monsgeek.com/wp-content/uploads/2023/02/crystal.jpg)
Type: Linear
Operating Force: 43gf ± 5gf
End Force: 50gf ± 5gf
Total Travel: 4.0-0.5mm
Pre-Travel: 1.6±0.3mm
Akko CS Crystal
![](https://www.monsgeek.com/wp-content/uploads/2023/02/Switches-18-1.jpg)
Type: Linear
Operating Force: 45gf ± 5gf
End Force: N/A
Total Travel: 4.0 mm
Pre-Travel: 2.0mm
Cherry MX Red RGB
![](https://www.monsgeek.com/wp-content/uploads/2023/02/ttc-demon.jpg)
Type: Linear
Operating Force: 50gf
End Force: 63.5gf
Total Travel: 4.0 ± 0.4mm
Pre-Travel: 2.0 ± 0.4mm
Akko x TTC Demon
Clicky Switch
![](https://www.monsgeek.com/wp-content/uploads/2023/02/Akko-Blue.jpg)
Type: Clicky
Operating force: 50gf ± 5gf
Total Travel: 4.0 – 0.5mm
Pre-Travel: 1.9 ± 0.3mm
Tactile Position: 1.5 ± 0.3mm
Tactile Force: 60gf ±5gf
Akko Blue
Silent Switch
Type: Linear
Operating Force: 60gf ± 15gf
Total Travel: 3.7 – 0.4mm
Pre-Travel: 1.9 ± 0.6mm
Tactile Position: /
Tactile Force: /
Cherry MX RGB Silent Black
Type: Tactile
End Force: 45gf ± 15gf
Total Travel: 4.0 – 0.4mm
Pre-Travel: 2.0 ± 0.6mm
Tactile Position:1.25mm
Tactile Force: 55gf ±15gf
Gateron Orange – Lubed
