M3 V5 HE Fully Assembled

$114.99

The M3 V5 HE is a premium magnetic switch keyboard, featuring significant upgrades including a higher scanning rate and enhanced precision of up to 0.005 mm for lower latency and more stable rapid key triggering.

Magnetic Switch: 8K Hz Polling Rate Wired USB-C and 2.4G Wireless Solution
Premium Build: TKL 87-Key aluminum case for more desk space and enhanced gaming control
Quick-Release: Innovative Ball Catch mechanism for fast, tool-free case assembly/disassembly.
Gamer Advantage: Features like Rapid Trigger, Snap Key, Toggle Key, and DKS provide a competitive edge in fast-paced games.
Addressable RGB: Vibrant lighting with a high 500Hz refresh rate for smooth, flicker-free illumination.

Support MonsGeek V4 Driver: Win/Web.

Disclaimer: The keyboard does NOT support mechanical switches.

ADD TO CART

Join Waitlist

We will inform you when the product arrives in stock. Please leave yourvalid email address below

Email me when available

Thank you

Out of Stock

In Stock

On Backorder

Shopping for someone else but not sure what to give them? Give them the gift of choice with a gift card.

RECIPIENT INFO

I understand that this is a Pre-Ordered Product so it will not ship instantly.

BUY NOW

Unavailable

Select Options

JOIN WISHLIST

M3 V5 HE Fully Assembled

BUY NOW

Unavailable

Select Options

ADD-ONS

Akko Astrolink Magnetic Switch (6pc)

+$7.99 ~~11.55~~

GH300 Black Wireless Headphone

+$36.99 ~~39.99~~

Akko Pulse 01 Gaming Mouse with PAW3950

+$59.99 ~~79.99~~

Akko 8th Anniversary Titanium Keycap

+$23.99 ~~29.99~~

up to RT 0.005mm Precision Customizable 32K Scanning Rate Magnetic Switch Hall Effect Mod-Tap Toggle Key ARGB Adjustable Actuation Snap Key 8K Polling Rate

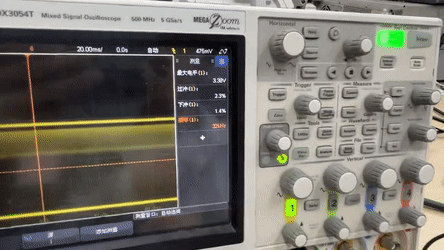

32KScanning Rate

Why Does 32K Matter?

Learn The Benefits

Device Latency Breakdown

Device Scan

Internal Processing

Transport

t_scan – Device Scan

Time to detect key position changes.

Range: 0.03 – 0.05 ms

✓ Optimized with 32K Scan Rate

t_processing – Processing

MCU processes scan data internally.

Range: 0.1 – 0.5 ms

✓ Offloaded by Logic ICs

t_transport – Transport

USB polling rate interval.

Range: 0.125 ms (8K Polling)

Lower Latency for Faster Response

The higher the scan rate, the more frequently the keyboard checks switch position changes. This allows key actuations to be detected earlier and processed with greater consistency, delivering quicker feedback and achieving very low input latency in real gaming and typing scenarios.

More Precise and Stable Rapid Trigger

At a 32K scan rate, even slight finger lifts are captured instantly and reliably, allowing the switch to reset with exceptional accuracy. The result is finer actuation steps, repeatable trigger behavior, and a predictable feel — ensuring stable rapid triggering during fast-paced, high-precision input.

Optimized Architecture for 32K Scanning

To support 32K scanning without increasing processing latency, M3 V5 HE adopts a re-architected logic framework. With 15 dedicated logic ICs offloading auxiliary tasks from the MCU, processing load is reduced, ensuring lower T_Processing and stable high-speed performance,even under extreme data throughput.

🔍 Click to enlarge

0.005mm Precision

Achieve ultra-accurate 0.005mm Rapid Trigger and adjustable actuation distance in 0.005mm step. Fine-tune your typing or gaming experience.

Conventional Mechanical Switches

・Actuation：Fixed Position
・Reset：Fixed Position

Rapid Trigger Keyboard

・Actuation：Adjustable, starting at 0.1mm
・Reset：By adjusting the RT sensitivity,even the slightest upward movement will immediately reset.
→ after the reset, pressing down again will instantly retrigger.

Regular Keyboard

Rapid Trigger Keyboard

Magnetic Switch Demo – Red & White Edition

Explore More of Magnetic Switch Keyboard

MonsGeek Snap Keys Off

MonsGeek Snap Keys On

Snap Key

Snap Key is MonsGeek’s implementation of SOCD, prioritizing the most recent keypress for swift directional changes without releasing previous inputs. This ensures fluid, responsive control in FPS games, where quick reactions and precise movement are crucial.

Tap

Hold

Mod-Tap

Mod Tap is a design that provides convenience for gaming. It enables the creation of dedicated or dual-functional keys based on key press behavior. A single keypress can achieve two functions: holding down the key for one function, and pressing the key for another, improving efficiency and control.

A0.5mm

H1.0mm

F2.0mm

C2.5mm

Magnetic Switch

Dynamic Keystrokes

Pressing a key can trigger four different key operations.Depending on your keypress force: a light press triggers action 1, a deeper press activates action 2, and releasing the key also supports a two-stage key setting.This multi-stage input design enhances key more flexible control.

Toggle Key (TGL)

TGL, or Toggle Key, transforms a key into a toggle switch. When you press this switch, you can activate one of two scenarios: either continuously hold down the key/function, or trigger the key/function multiple times at a high frequency, improving overall efficiency.

Customize with MonsGeek V4 Driver

Unlock full control over your keyboard with customization features

Keys Remapping

RGB Customizable

Rapid Trigger Setting

Magnetic Switch Features

Shine Your Game Night

Features ARGB (addressable RGB) with a 500Hz refresh rate, delivering individually controlled LEDs for smooth, flicker-free lighting. With alpha-channel integration and high-frequency refresh, it provides richer dynamic effects and reduces visual fatigue—perfect for gaming setups and aesthetic builds.

On-board Memory

Save your favorite lighting profiles directly on the keyboard for instant use anywhere.

PC Shine-through

Keycaps allow RGB lighting to shine through, giving your setup a vibrant glow.

Cherry Profile

Experience the classic Cherry profile for comfortable and precise typing.

Magnetic Switch

AstroAim Switch

Reliable and Essential Performance

TypeMagnetic

Initial Force35gf

Total Travel3.5 ± 0.1mm

End Force55gf

Cross-Compatible with Mainstream Magnetic Switches

The M3 V5 HE Rapid Trigger Keyboard offers cross-compatibility with 7 third-party downward-facing N-pole magnetic switches. Users can select the corresponding switch from the list in the MonsGeek Driver and easily calibrate the keyboard after replacement. You can also mix and match them in different keys simultaneously.

Automatic Calibration

The powerful Arm Cortex-M4 CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20°C and 80°C, ensuring faster performance and extended battery life.

Manual Calibration

Users can manually calibrate the keyboard through the MonsGeek Driver to fix double-click issues, especially after replacing a mechanical switch. This may also resolve key registration failures or unresponsive keys.

Quick Connect Technology

Rapid Assembly & Disassembly

Our innovative ball catch system enables a secure, tool-free quick release design. Push to lock, pull to release — ensuring professional-grade stability with effortless operation.

No tools required

5-second assembly

Secure locking mechanism

Enjoy Same as Mechanical Keyboards

RGB Backlight

M3 V5 features around 16 vibrant preset backlighting effects and offers extensive customization through the MonsGeek Driver, giving users precise control over brightness and speed.

Gasket-mounted

A gasket-mounted structure delivers a comfortable, soft, and cushioned typing experience right out of the box.

Lubed Stabilizers

Pre-lubed plate-mounted stabilizers reduce rattle and ensure smoother, more consistent keystrokes.

South-facing PCB

South-facing PCB design avoids causing interference with Cherry profile keycaps during customization, offering more compatibility and flexibility.

Multi-mode

M3 V5 HE feature an upgraded 8000mAh built-in battery, allowing for extended uninterrupted typing, gaming, or productivity without constant recharging. They can be connected to multiple devices through BT 5.0, multi-host 2.4Ghz (with a receiver), and wired Type-C modes with easy switch.

Connectivity	Combination Key
BT * M3 V5 makes it easy to connect up to 3 devices with a simple Fn+E/R/T combination, enabling seamless switching between tablets, computers, and phones.	FN + E/Y/T
2.4G Wireless * M3 V5 is equipped with a receiver that allows users to utilize the 2.4GHz wireless mode, providing low latency suitable for gaming and typing purposes.	FN + Y
USB-C Wired * M3 V5 offers a USB-C wired connection ensuring rapid, zero-latency input for gaming and typing.	FN + U

Mac & Win Switch

There is a physical switch under the “CAPS” key, turn top or bottom for easy switch.

Top: Mac Wireless Mode
Middle: Default Windows Wired Mode
Bottom: Windows Wireless Mode
Note: The switch is located under the CAPS key

User Manual

M3 V5 HE Specification

Model

M3 V5 HE

Mount

Gasket-mounted

Case Material / Color

Aluminum Black / Aluminum White

Connectivity

Tri-mode

Battery

8000mAh

LED Orientation

South-facing LEDs

Customizable

Keys Remapping / Customizable RGB

Plate

Aluminum

Size / Weight

around 36.6cm*14.6cm*3.4cm/ 2.1kg

Software

MonsGeek Driver & Web-Based Driver

Package Included

Keyboard, Keycap Puller, Switch Puller, User Manual, USB Cable, Keyboard Cover, 2.4G Receiver

Sensor

HE (Hall Effect)

Magnetic Switch Cross-Compatibility

Yes

Mechanical Switches Supported

Magnetic Switch

Akko AstroAim Switches

Polling Rate

Universal 8K Wired + 8K 2.4G Wireless

Universal Scanning Rate

32K

Magnetic Switch Feature

Mod-Tap / Toggle Key / Dynamic Keystroke / SOCD

Plate-mounted Stabilizer

Pre-lubed Demagnetized Stabilizer

RT Stabilizer

Yes

RT Accuracy

0.005-2.500mm

Actuation Range (mm)

Adjustable: 0.100-3.300mm
